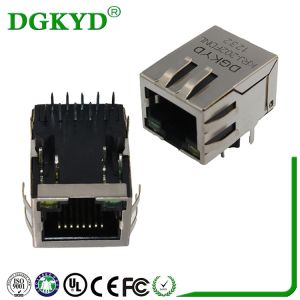

| ELECTRICAL |

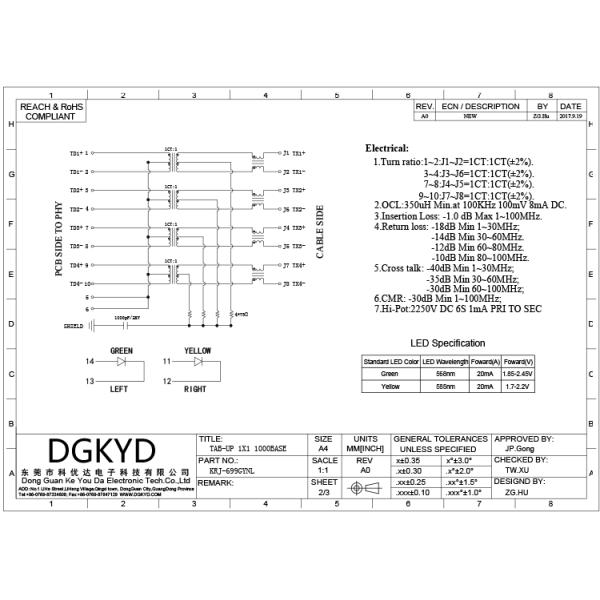

| Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement |
| High performance for maximum EMI suppression |
| 350uH minmum OCL with 8mA bias current |
| 1.Current Rating | 1.5 amps |
| 2.Voltage Rating | 125vac |
| 3.Insulation Resistance | 500 MΩmin |
| 4.Contact Resistance | 30 MΩmax |
| 5.Withstanding Voltage | AC 1500V RMS 50Hz or 60Hz 1 min |
| Instertion Loss: | -1.2dB Maximum @100KHz-100MHz |
| Return Loss: | -18dB Minimum @1MHz-30MHz |
| -14dB Minimum @30MHz-60MHz |
| -12dB Minimum @60MHz-80MHz |
| Common Mode Rejection: | -30dB Minimum @1MHz-100MHz |
| Cross Talk: | -30dB Minimum @1MHz-100MHz |

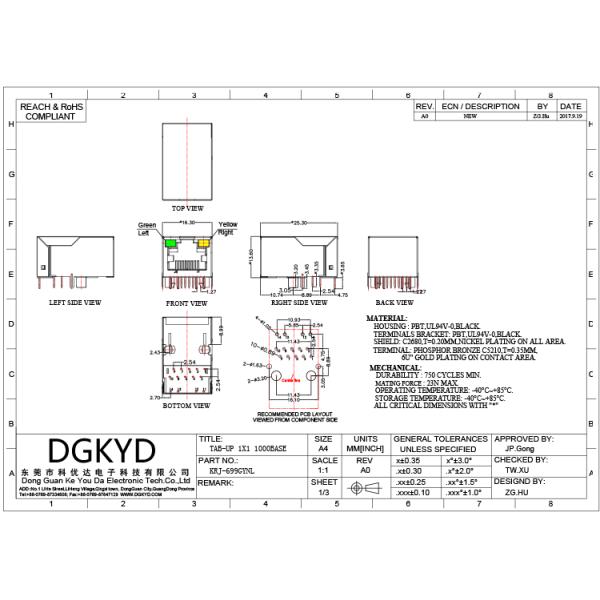

| MECHANICAL |
| 1.Insertion Force | 2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g |
| 8 CONTACTS….900g 10 CONTACTS....1050g |
| 2.Retention Strength | 7.7KG.F min between jack and plug |
| 3.Durability | 800 mating cycles min |
| MATERIAL |
| 1.Housing | ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0) |
| 2.Contact Wire | Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness |
| phosphor bronze alloy selective gold plating over nickel |
| 3.Shield | 0.20~0.25mm thickness brass with tin plated |
| 4.Gold Plating | 3u inch,6u inch,15u inch,30u inch,50u inch |
| 5.LED Specification | LED Color: | LED Wavelength: | Forward(V MAX): | Typical (V TYP): | Luminous Intensity: |
| Green | 560-580 nm | 2.5V | 2.1-2.2V | 9-25 MCD |
| Yellow | 580-610 nm | 2.5V | 2.1-2.2V | 9-30 MCD |
| LED intensity/wave length measured with Photo Research PR-650 Colormeter |
| With a forward current of 20 mA,Absolute Maximum Ratings (Ta=25°C) |

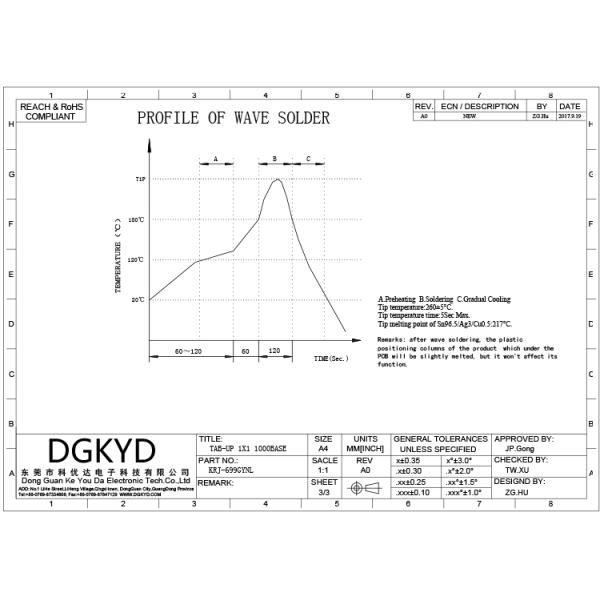

| 6.RoHS peak wave solder | RoHS peak wave solder temperature rating 240°C±5°C |
| ENVIRONMENTAL |
| Operating Temperature: | -40°C to 85°C |
| Working Temperature | -40°C to 85°C |
| APPLICATION |
| NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK |
| STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX. |
